Streamit

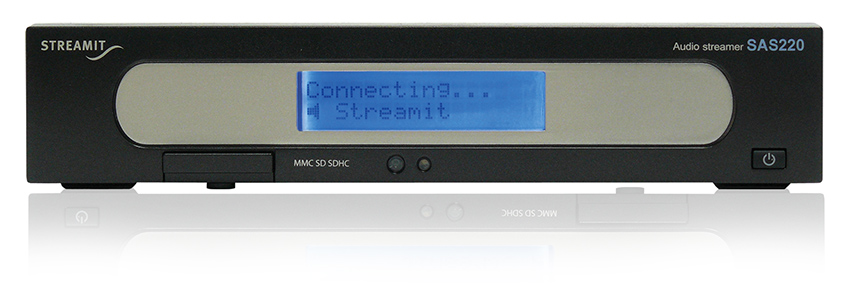

Streamit SAS220 IP Audio Encoder

Streamit SAS220 Audio Streamer - $699

Broadcast digital audio to any internet connected device, without software or a PC. The Streamit SAS220 IP Audie encoder turns your analog audio into digital MP3 or Ogg Vorbis.

SAS220

Inputs and Encoding

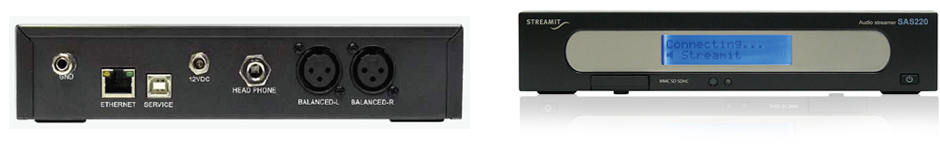

The SAS220 IP audio encoder has all the professional features required by audio broadcasters. Connect your XLR cables directly to the rear of the device, for seamless integration with your current studio setup. Streamit SAS220 encodes your analog source and sends MP3 digital audio to a decoder or any SHOUTcast or Icecast streaming server for distribution.

Applications

  • Professional internet audio encoder
  • Stream to Icecast or SHOUTcast
  • Point to point streaming
  • Ogg Vorbis and MP3 Encoding

Features

  • Easy to use and reliable
  • Easy configuration and control
  • Autonomous operation, no PC required
  • XLR inputs
  • Headphone output for signal monitoring
  • Rack mountable

Easy to deploy

With Streamit SAS220, internet radio deployment is easier than ever. Simply connect your audio source and Ethernet cable and setup your encoder through the easy to use web interface.

Technical Specifications

SIZE AND WEIGHTS
  • Sizes (b x d x h mm) 220 x 125 x 45
  • Size of packaging (b x d x h mm) 310 x 220 x 100
  • Weight (g) 800
  • Total weight in packaging (g) 1300
SPECIFICATIONS
  • Stereo encoder Ogg Vorbis, MP3
  • Sample frequency (max. kHz) 48
  • Bitrate (stereo, max. kbps) 256
  • Ethernet controller 10 Mbps
  • Audio input impedance > 20 kOhms (balanced)
  • Common mode rejection ratio > 50 dB
  • Input level (nominal, clipping) 6 / 15 dBu
  • LCD-display 62 x 15 mm, 2 x 16 characters
  • LCD-display with backlight / color yes/blue
  • Languages English
  • Real-time clock yes
  • Firmware upgrade on-line yes
  • Compatible with Icecast yes
  • Compatible with Shoutcast yes
  • SD memory card / back-up no
  • Power adapter 100 - 240 VAC /
  • Power consumption
  • - standby (typical W) 2
  • - operation (typical W) 3
  • Streaming clients 2 (max)
INPUTS
  • Ethernet 10 Base-T RJ45
  • Power in 12 Vdc Screw-jack
  • Service-connector in/out USB-B
  • Infrared control yes
  • RS232 yes
  • Balanced inputs 2x XLR female
OUTPUTS
  • Stereo headphone / line output 6,3 mm 2 x RCA
TEMPERATURE RANGE
  • Operation (°C) +10 to +35
  • Storage packed (°C) -25 to +50
  • Storage unpacked (°C) 0 to +45
ACCESSORIES
  • 19”-rack mounting kit MK (optional)
SIGNAL SPECIFICATION OF COMPLETE SOLUTION
  • Amplitude response < +/- 1 dB, from 20 Hz - 20 kHz
  • Total harmonic distortion < 0,15%
  • Total intermodulation distortion < 0,15%
  • Signal to noise ratio > 75 dB relative to 0 dBFS (Unweighted)
  • Left/right channel level difference < 1 dB, from 20 Hz - 20 kHz
  • Left/right channel phase difference < 5 °, from 20 Hz - 20 kHz
  • Left/right channel separation stereo mode > 70 dB, from 20 Hz - 20 kHz
  • Audio level non-linearity < 0.4dB, from 20 Hz - 20 kHz @ -40dB0s
  • Signal to hum ratio > 80 dB, RMS from
  • Minimum delay @ 128 / 64 / 16 kbps 0,7 / 1,5 / 3,2 s
